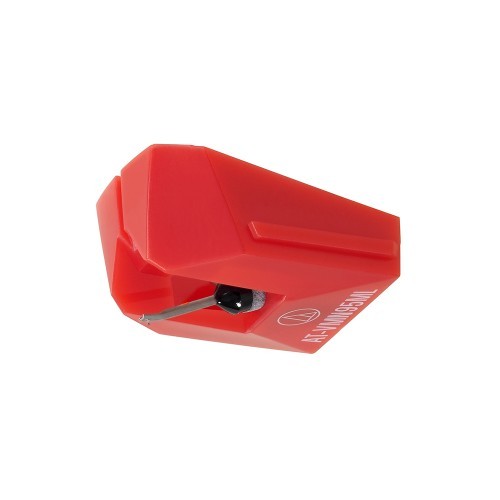

Audio Technica AT VMN95ML Microline Stylus

Audio Technica AT VMN95ML Microline Stylus
  • Click to enlarge

£129.95


Product Information
Specification
  • Original Audio Technica ™ AT-VMN95ML  Diamond Microline Elliptical  Stylus
  • New Unused from Authorised Audio Technica UK Reseller
  • FEATURES::
  • ABOUT THE VM95 series Microlinear stereo cartridge (not included)

    The AT-VM95ML, features a Nude Microlinear diamond, not only the Microlinear stylus will permit to double the duration of your stylus. The performance of a line contact stylus, will minimize the “inner groove distortion” as well as providing extended frequency response and maximize resolution in the medium and high frequencies of the audio program material.

  • material. Aluminium cantilever
  • 3.5mV output voltage
  • Compatible body with all VM95 Series stylus assemblies
  • 20 to 25,000Hz frequency response
  • SPECIFICATIONS~:
ModelSTYLUS FOR AT-VM95ML
TypeVM Stereo Dual Magnet
Mounting1/2” centres
Frequency Response20 - 25,000 Hz
Channel Separation23 dB (1 kHz)
Output Channel Balance1.5 dB (1 kHz)
Output Voltage3.5 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle23°
Vertical Tracking Force Range1.8 - 2.2g (standard 2.0 g)
Stylus ShapeMicrolinear
Stylus Size2.2 x 0.12 mil
Stylus ConstructionNude Square Shank
CantileverAluminium Pipe

Static Compliance20 x 10 – 6 cm / dyne
Dynamic Compliance10 x 10 – 6 cm / dyne (100 Hz)


Replacement StylusAT-VMN95ML
Accessories Included



Product CodeVMN95ML
ConditionNew
Weight0.03kg
