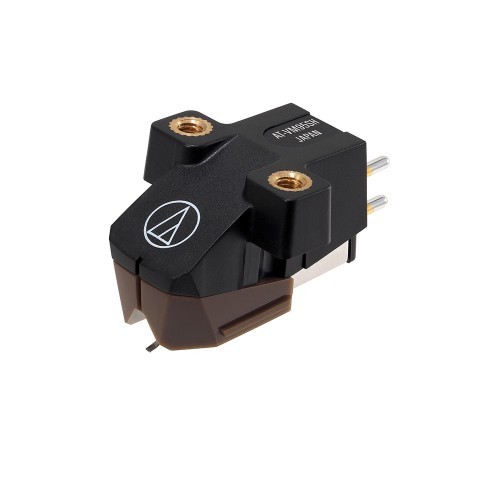

Audio-Technica AT VM95SH Cartridge with Shibata Stylus

Audio-Technica AT VM95SH Cartridge with Shibata Stylus
  • Click to enlarge
  • Click to enlarge

£169.00

This product is currently out of stock


Product Information
Specification
  • Original Audio-Technica ™ AT-VM95SH Cartridge with SHIBATA Elliptical Stylus.
  • New, unused from authorised Audio-Technica UK reseller.
  • DUAL MOVING MAGNET STEREO CARTRIDGE.

FEATURES:

  • Aluminium cantilever
  • 3.5mV output voltage
  • Compatible body with all VM95 Series stylus assemblies
  • 20 to 25,000Hz frequency response
ModelAT-VM95SH
TypeVM Stereo Dual Magnet
Mounting1/2” centres
Frequency Response20 - 25,000 Hz
Channel Separation23 dB (1 kHz)
Output Channel Balance1.5 dB (1 kHz)
Output Voltage3.5 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle23°
Vertical Tracking Force Range1.8 - 2.2g (standard 2.0 g)
Stylus ShapeShibata
Stylus Size2.7 x 0.26mil
Stylus ConstructionNude Square Shank
CantileverAluminium Pipe
Coil Impedance3.3 kΩ (1 kHz)
Coil Inductance550 mH (1 kHz)
DC Resistance485 Ω
Static Compliance20 x 10 – 6 cm / dyne
Dynamic Compliance10 x 10 – 6 cm / dyne (100 Hz)
Wire Used for CoilT.P. Copper
Recommended Load Impedance47,000 Ω
Recommended Load Capacitance100-200 pF
Cartridge Weight6.1g
Dimensions17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement StylusAT-VMN95SH
Accessories IncludedTwo 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Non-magnetic screwdriver



Product CodeVM95SH
ConditionNew
Weight0.03kg
