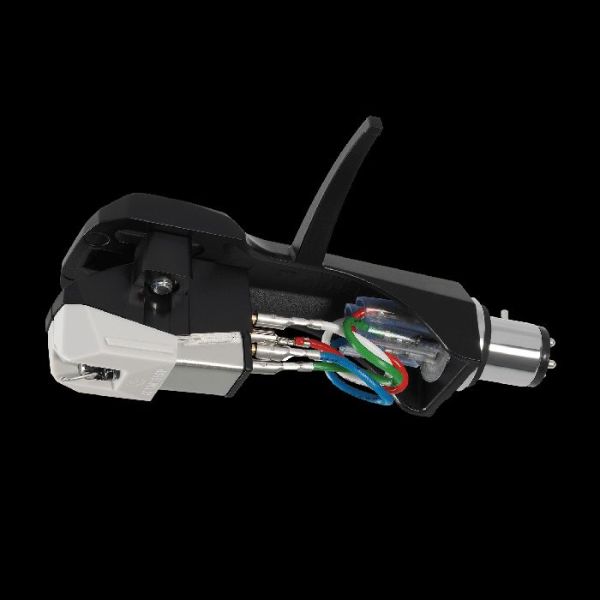

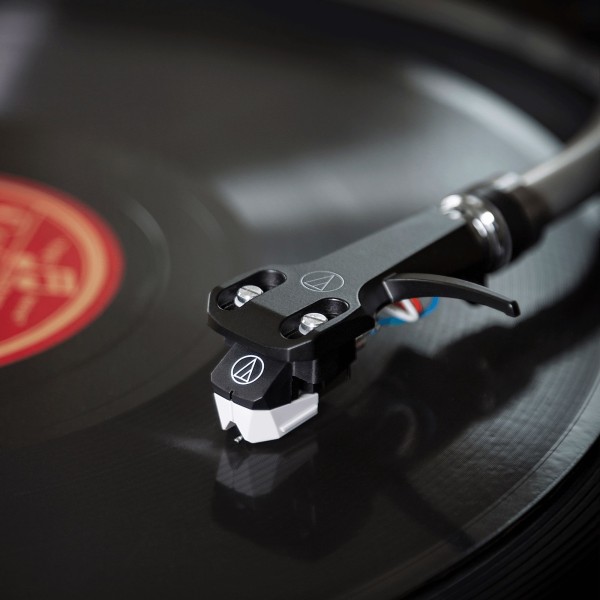

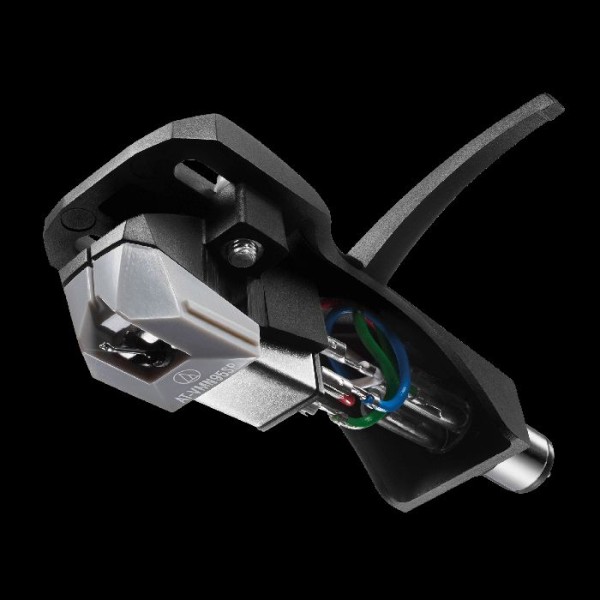

DUAL MOVING MAGNET MONO/STEREO CARTRIDGE
Standard model with a conical / spherical stylus. .
Since SP records have monaural modulation, when combining an SP stylus with a stereo body, such as the AT-VM95SP, it is recommended to use the “MONO ON” function “ of your standard Stereo Phono Preamplifier to minimize record surface noise.
AT-VM95SP, as stereo cartridge for SP mono records, when used with a dedicated archiving phono preamplifierequalizer incorporating various functions to generate a mono signal from Stereo inputs (Mono L+R, Mono L, Mono R, LR Variable Mix) allows professional archivers to minimize noise and distortion by sampling the least damage side of the grooves from an old record.
| Model | AT-VM95SP |
| Type | VM Stereo Dual Magnet |
| Mounting | 1/2” centres |
| Frequency Response | 20 - 20,000 Hz |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Output Voltage | 2.7 mV (@ 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 4.5 - 5.5g (standard 5.0g) |
| Stylus Shape | SP 3 mil Conical Bonded |
| Stylus Size | 3 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| Coil Inductance | 550 mH (1 kHz) |
| DC Resistance | 485 Ω |
| Static Compliance | 12 x 10 – 6 cm / dyne |
| Dynamic Compliance | 2 x 10 – 6 cm / dyne (100 Hz) |
| Wire Used for Coil | T.P. Copper |
| Recommended Load Impedance | 47,000 Ω |
| Recommended Load Capacitance | 100-200 pF |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Replacement Stylus | AT-VMN95SP |
| Accessories Included | Two 11 mm installation screws; Two 8 mm install |
| Product Code | VM95SP/H |
| Condition | New |
| Weight | 0.03kg |
DUAL MOVING MAGNET MONO/STEREO CARTRIDGE
Standard model with a conical / spherical stylus. .
Since SP records have monaural modulation, when combining an SP stylus with a stereo body, such as the AT-VM95SP, it is recommended to use the “MONO ON” function “ of your standard Stereo Phono Preamplifier to minimize record surface noise.
AT-VM95SP, as stereo cartridge for SP mono records, when used with a dedicated archiving phono preamplifierequalizer incorporating various functions to generate a mono signal from Stereo inputs (Mono L+R, Mono L, Mono R, LR Variable Mix) allows professional archivers to minimize noise and distortion by sampling the least damage side of the grooves from an old record.
| Model | AT-VM95SP |
| Type | VM Stereo Dual Magnet |
| Mounting | 1/2” centres |
| Frequency Response | 20 - 20,000 Hz |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Output Voltage | 2.7 mV (@ 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 4.5 - 5.5g (standard 5.0g) |
| Stylus Shape | SP 3 mil Conical Bonded |
| Stylus Size | 3 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| Coil Inductance | 550 mH (1 kHz) |
| DC Resistance | 485 Ω |
| Static Compliance | 12 x 10 – 6 cm / dyne |
| Dynamic Compliance | 2 x 10 – 6 cm / dyne (100 Hz) |
| Wire Used for Coil | T.P. Copper |
| Recommended Load Impedance | 47,000 Ω |
| Recommended Load Capacitance | 100-200 pF |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Replacement Stylus | AT-VMN95SP |
| Accessories Included | Two 11 mm installation screws; Two 8 mm install |
| Product Code | VM95SP/H |
| Condition | New |
| Weight | 0.03kg |
