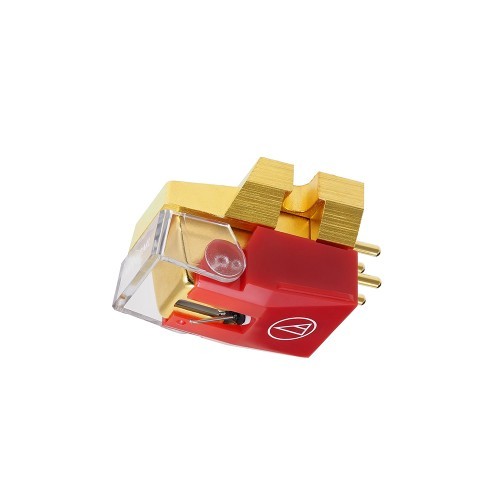

Audio Technica VM740ML Cartridge with MicroLine Stylus

Audio Technica VM740ML Cartridge with MicroLine   Stylus
  • Click to enlarge

£299.00 £285.00


Product Information
Specification
  • Original Audio Technica VM740ML Cartridge with Diamond MicroLine   Stylus
  • New Unused from Authorised Audio Technica UK Reseller
  • FEATURES::
  • High-end model featuring a MicroLine™ stylus in an aluminium die-cast alloy body. In addition to outstanding high-frequency reproduction, this model enables clear sound image localisation.

  • Aluminium tapered cantilever
  • Para-toroidal coils improve generating efficiency
  • Centre shield plate between the left and right channels reduces crosstalk
  • Die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield
  • SPECIFIATIONS

Recommended Load Capacitance

100 – 200pF

Type

VM Type

Frequency Response

20 - 27,000Hz

Channel Separation

28dB (1kHz)

Channel Balance

1.0dB (1kHz)

Tracking Force

1.8 – 2.2g (2.0g standard)

Coil Impedance

2,700Ω (1kHz)

Vertical Tracking Angle

23˚

Recommended Load Impedance

47,000Ω

Static Compliance

40 x 10-6 cm/dyne

Dynamic Compliance

10 x 10-6 cm/dyne (100Hz)

Output Voltage

4.0mV (1kHz, 5cm/sec.)

Stylus Size

0.12 x 2.2 mil

Cantilever

Aluminium Tapered Pipe

Stylus Construction

Nude Square Shank

Mount

1/2” centres

Dimensions

17.3 (H) x 17.0 (W) x 28.2 (L) mm

Weight

8.0g

Replacement Stylus

VMN40ML

Accessories

Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1

Product CodeVM740ML
ConditionNew
Weight0.03kg
